UP BOX

The Next Generation 3D Printer

UP BOX

A world leading 3D printer for your desk.
HEPA filter to remove air-born contaminants | Filament Sensor – Automatically pauses when out of filament | Power Outage – Resume mid-print | Industrial design with internal steel chassis | Impressive HD 100 micron 3D print resolution | Fully automatic platform leveling and height sense | Improved 3D printing speed – 30% faster than a UP

Secure Wi-Fi

Connect to and control the BOX+ from any Wi-Fi enabled computer or mobile device running UP Studio or the UP Studio App. Add a printer-specific password for additional post-connection security to keep network hackers at bay.

Blackout Recovery

Should the BOX+ suffer a power loss, printing is paused and the point of interruption is remembered. Once power is re-established, printing can resume and the print job can continue as if nothing had happened.

UP Studio

Powerful, yet renowned for simplicity and usability Smart-Support Technology Both software-assisted calibration and automatic calibration 3D model error detection and correction Customizable bed and nozzle temperature settings Convert 2D images into 3D images Compatible with Windows 7 SP1 or later, MacOS X Importable file formats: .up3, .ups, .stl, .obj, .3mf, .ply, .off, .3ds, .gcode

UP Studio App

Easy-to-use interface Model creation with basic building blocks via Puzzle Mode Convert 2D images into 3D images Access to Moshop Printer access via Wi-Fi Compatible with iOS 8.x or later Importable file formats: .up3, .ups, .stl

QUICK SPECIFICATIONS

Build Volume

255 x 205 x 205 mm (W x D x H)

Smart Support

Intelligent Smart Support material, printed in the same material, printed at a lower density and built automatically by the included 3D print software

Selectable layer resolution

0.1 mm (100 micron), 0.15 mm 0.2 mm, 0.25 mm, 0.3 mm, 0.4 mm

Platform Levelling

Fully automatic levelling with integrated levelling probe – no human interaction required

Platform Height

Fully automatic height sensor – no human interaction required

Average noise

51.7 dB – as quiet as your fridge

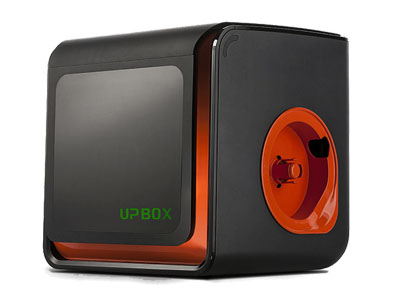

UP BOX 3D Printer

Download Brochure

Features of UP BOX 3D Printer

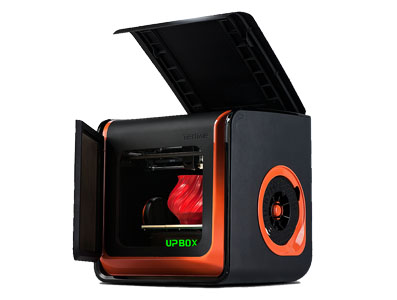

UP BOX 3D Printer

High Print Quality

BIG PIX Graphic Systems Inc., has acquired exclusive distributorship of top-of-the-line brands for different types of industries from their respective countries. The convenience of finding all the leading brands in one place.

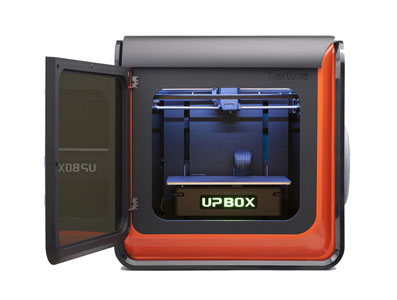

UP BOX 3D Printer

Recirculating HEPA Filtration with Activated Carbon

Tested by The Built Environment Research Group at the Illinois Institute of Technology, The BOX+'s internal air filter radically reduces UFP (ultrafine particle) and VOC (volatile organic compound) emissions during printing, recycling the build chamber's air, over and over.

UP BOX 3D Printer

Full Enclosure

Warm air is retained within the build chamber, minimizing the risk of ABS warping while further reducing UFP and VOC environmental impact.

UP BOX 3D Printer

Powerful Software

Take the headache out of printer settings. UP Studio and the UP Studio APP were created specifically for UP printers and allow you to take full advantage of their features. Set up prints, adjust smart-support creation, import a wide variety of file formats and perform standard maintenance tasks, all within an easy-to-use interface.

UP BOX 3D Printer

Advanced Materials Options

The BOX+ provides superior and safe ABS printing, but UP Studio's ability to set custom nozzle and platform temperatures means you can print with a wide variety of filaments to suit your professional needs: ABS, PLA, PLA Composites, Polycarbonate, Bronze, Conductive, Nylon, Wood, ASA, PET, Flexible, Carbon Fiber and more.

UP BOX 3D Printer

Large Build Volume

Do you dream of huge, warp-free ABS printing? Are you tired of cutting your models into pieces and then printing each piece, hoping to put it back together during post-processing? Live your dreams and stop trying to fix large jobs after the fact with the BOX+'s 255 × 205 × 205 mm build envelope.

UP BOX 3D Printer

Empty Spool Detection

Stop print failures resulting from a miscalculation of the amount of filament remaining. The BOX+ knows you have run out of filament and will pause the print job until you can replace the spool.

UP BOX 3D Printer

Interchangeable Print Surfaces

Choose the surface that fit yours needs and easily swap from one surface to another. UP Perf – Maximum first layer adhesion UP Flex – Medium first layer adhesion

UP BOX 3D Printer

Automatic Platform Calibration

How much time do you spend leveling your current printer's print bed? The BOX+'s electronic sensors and probes automatically detect nozzle height and bed level through a nine-point calibration sequence, allowing UP Studio to compensate for subtle variations in print surface height.

GALLERY

UP BOX 3D Printer
UP BOX 3D Printer
UP BOX 3D Printer
