JFX200-1213 EX

4 Key features

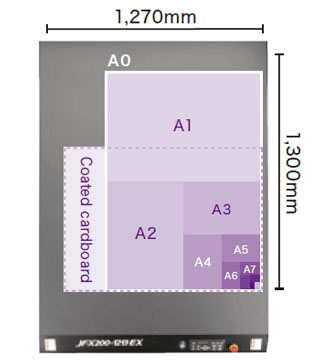

1. Middle-size flatbed (up to 1270 mm × 1300 mm) | Single unit - sign graphics & paper package print capability

30% less than JFX200-2513 EX body size.
Even table size supports all the international A size.

Sign graphics use: supports A0 size sign panel

Paper and package: supports standard coated cardboard size

2. Max. 25m²/h The highest-in-class productivity | Suitable as an upgrade from a desktop UV printer

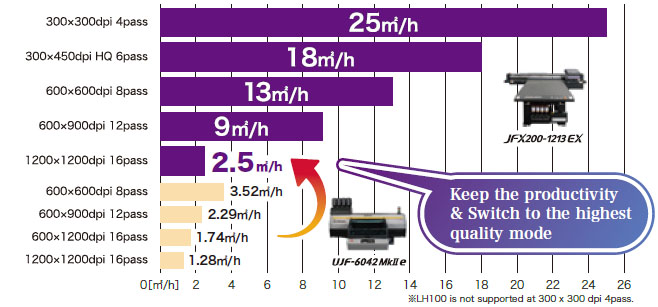

❚ Print speed comparison between the JFX200-1213 EX and the UJF-6042MkII e

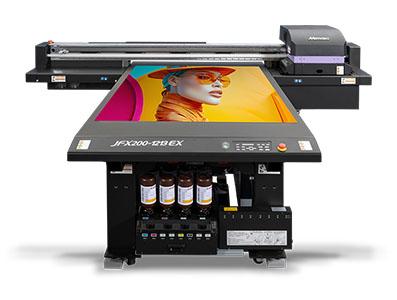

Mimaki JFX200-1213 EX medium-format UV-LED flatbed printer

Even faster texture printing | Fast, attractive and easy, added value texure printing

Increased braille printing speed. 2 types expression capability for application requirement. All of these can be done just with standard design software and RasterLink7. Bring texture design into shape instantly.

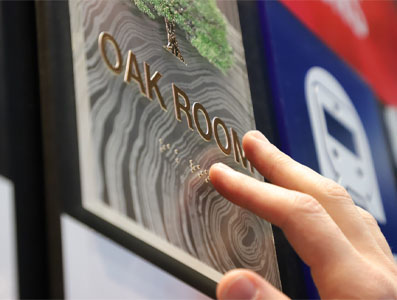

❚ High-speed Braille printing that is only possible with Mimaki's flatbed technology

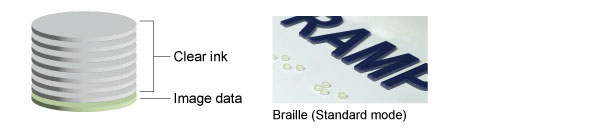

Standard Mode

Braille part is constructed by clear ink emboss printing. Transparent braille dots don't interrupt the based graphic design.

High-speed mode

High-speed texture printing by bi-directional printing, utilized for braille and pictograms.

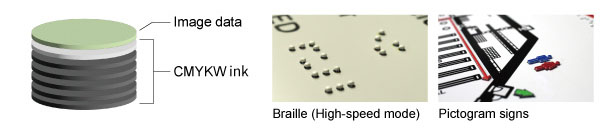

❚ 2.5D print that combines texture print and smoother bumps and dips

Automatically generates texture layering data based on graphic data in RasterLink7. Layers UV ink to make bumpy expressions, the thicker the layers are, highlights bumpes and dips.

4. High image quality printing | Smooth gradation and high density printing

❚ Fast and high quality production for custom goods,and signage

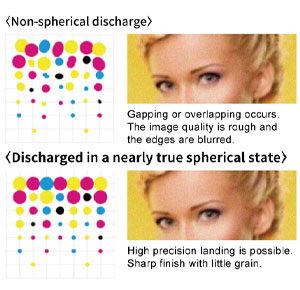

Waveform control

By discharging spherical ink droplets directly, depositing of droplets is facilitated and overlapping between dots is reduced, achieving a sharp print quality with low grain.

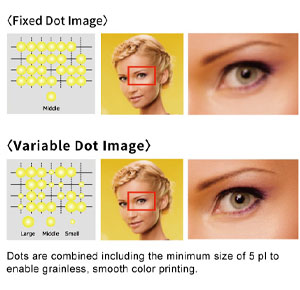

Variable dots

Three different ink dot sizes are used in printing to enable high-quality prints with reduced graininess.

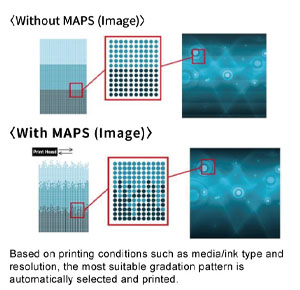

MAPS (Mimaki Advanced Pass System)

Banding (horizontal stripes), uneven color, or glossy streak can be reduced to produce smooth prints by printing pass boundaries fading in gradation.

Operator-friendly UI (User Interface) and Stable operation technology

Operator-friendly user interfaces easily accessible from the front

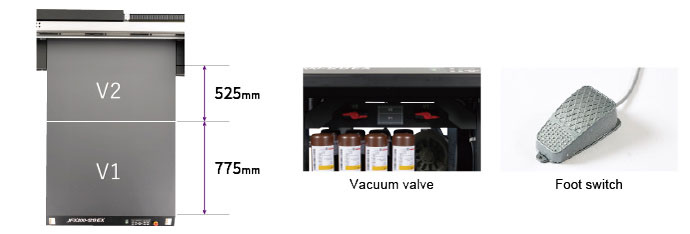

❚ Valve and foot switch for vacuum control

The vacuum area is divided into a front section and a rear section. The valve can be used to switch between them easily depending on the media size. The foot switch allows you to turn vacuum on/off while checking the media location.

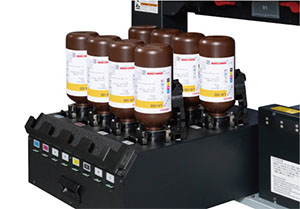

❚ Ink tank unit

The ink bottles can be accessed from the front side of the printer for replacement and maintenance. This minimizes the pathway to be followed by operators, increasing work efficiency.

Mimaki's technology for realizing stable operation: Auto maintenance function to shorten downtime

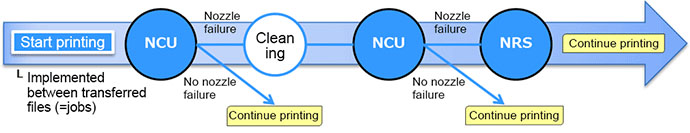

❚ NCU & NRS automatically detects missing nozzles and performs recovery

NCU (Nozzle Check Unit) detects the status of nozzles automatically. When the NCU detects a missing nozzle, it automatically performs cleaning. If cleaning does not solve the problem, NRS (Nozzle Recovery System) automatically replaces the defective nozzles with other nozzles, which enables users to continue their operation without waiting for service representative.

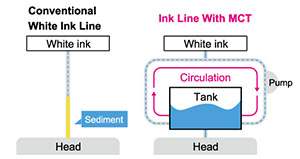

❚ Mimaki Circulation Technology (MCT) minimizes downtime

MCT is used in the ink tank and channel. The white ink is circulated at regular intervals to prevent pigment sedimentation that leads to malfunctions of the printhead.

NEW! MIMAKI JFX200-1213 EX

QUICK SPECIFICATIONS

Features of the Mimaki JFX200-1213 EX medium-format UV-LED flatbed printer

4 Key features

Operator-friendly UI (User Interface) and Stable operation technology

GALLERY

Watch how it works

Tags

Related Products

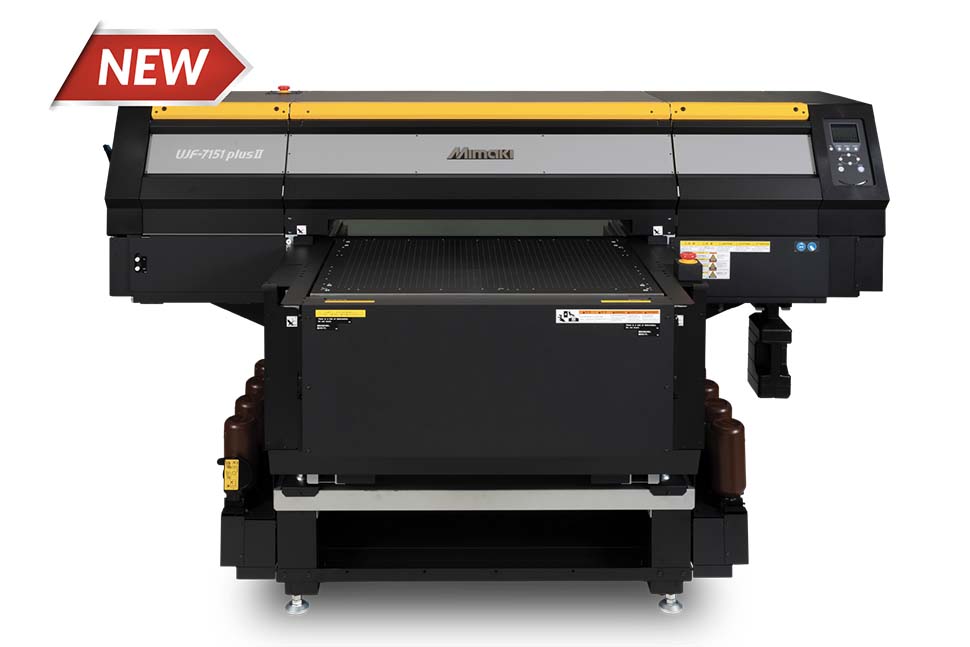

UJF-7151 PLUS II MIMAKI
