JFX200-2513 EX

World's first flatbed inkjet printer to offer 'one-touch' 2.5D texture capabilities with significant productivity gains thanks to a 280% increase on speed.

JFX200-2513 EX

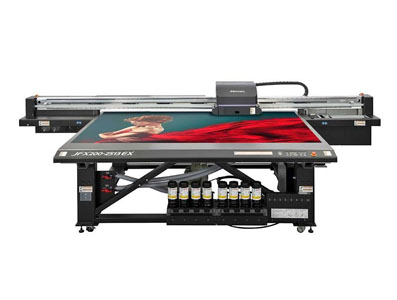

he "JFX200-2513 EX" is a successor to the "JFX200-2513" and is a large format flatbed UV inkjet printer that combines high-value-added printing and high productivity while being an entry model. Other improvements include stability and usability.

QUICK SPECIFICATIONS

Resolution

300, 450, 600, 900, 1,200dpi

Maximum diagram dimensions (W×D)

2,500×1,300 mm (98.4×51.2")

Max Media Height

Max. 50 mm (2.0")

Power supply

Single phase, 200 V AC-240 V AC, 50 Hz/60 Hz, less than 12 A

Weight

650 kg (1,433 lbs.)

Dimensions (WxDxH)

4,400×2,450×1,250 mm (173.2×96.4×49.2")

mimaki jfx200-2513 ex

Download Brochure

Features of the Mimaki JFX200-2513 EX

"2.5D Texture Maker" that enables easy creation of smooth semi-stereoscopic 2.5D data

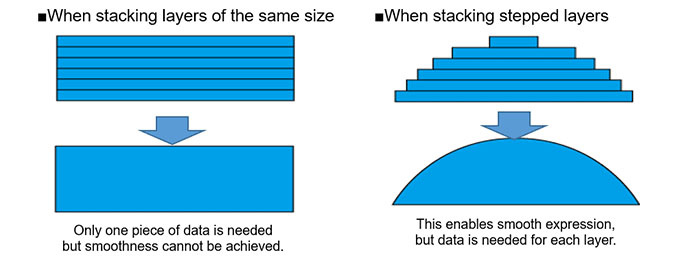

The "Surface Imaging (*1)" that we have been proposing includes "Emboss Print", which makes the surface look bumpy with many layers of UV ink. Although thicker layers can increase the bumpiness, smoother expression is only achieved by stacking stepped layers, so there was a need to manually prepare the data for each layer. *1 Mimaki's value-added print technology using UV inkjet printer

mimaki jfx200-2513 ex

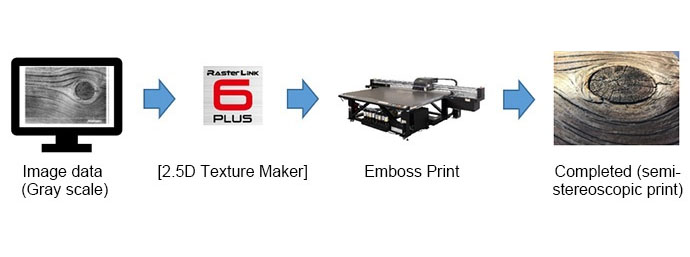

The "JFX200-2513 EX" allows you to create semi-stereoscopic 2.5D print data for stepped layers that are sized differently, simply by common Illustrator/Photoshop operations and RasterLink6Plus (standard accessory).

MIMAKI 3D Desktop Printer

Using the "2.5D Texture Maker (*2)" enables simple, smooth, semi-stereoscopic 2.5D print such as interior materials with printed bricks and woodgrain texture, an elevation of thick ink of an oil painting and embossed letters of signage, of which texture entices you to touch. *2 "2.5D Texture Maker" is available to JFX200-2513 EX only. (Status as of April, 2019)

mimaki jfx200-2513 ex
mimaki jfx200-2513 ex

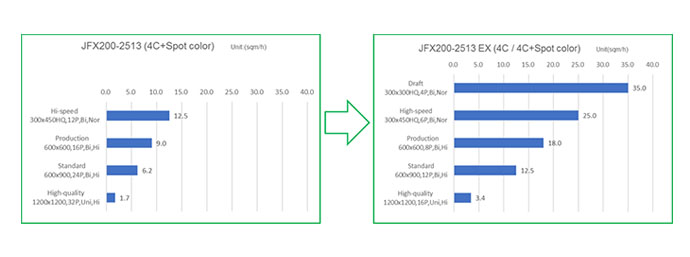

a) Print speed in white-simultaneous printing has improved 200% of the conventional model
The newly developed head unit is adopted to enable production without reducing speed even in white & color simultaneous printing. This has increased the productivity 200%(*1) compared to the "JFX200-2513" by resolution. *1 Comparison made between JFX200-2513 at Hi-Speed mode (12.5m2/h :134.5 sq. ft/h) and JFX200-2513 EX at Hi-Speed mode (25m2/h :269.0 sq. ft/h) / (4C + Spot Color, 300x450dpi, 12P, Bi, Nor) vs (4C/4C + Spot Color, 300x450dpi, 6P, Bi, Nor).

mimaki jfx200-2513 ex

b) Higher-grade productivity realized by adding the new print mode
"JFX200-2513 EX" adopts the new "Draft mode" to provide a higher-grade productivity, realizing a maximum print speed of 35m2/h (376.7 sq. ft/h)(*2). It can realize production 140% faster than the conventional model "JFX200-2513" with a maximum speed of 25m2/h (269.0 sq. ft/h). *2 In the case of 4C/4C + Spot Color 300x300dpi, 4P, Bi, Nor

a) NCU & NRS automatically detects missing nozzles and performs recovery
NCU (Nozzle Check Unit) detects the status of nozzles automatically. When the NCU detects a missing nozzle, it automatically performs cleaning. If cleaning does not solve the problem, NRS (Nozzle Recovery System) automatically replaces the defective nozzles with other nozzles, which enables users to continue their operation without waiting for service representative.

mimaki jfx200-2513 ex

b) Links with external stop interface allow users to meet safety standards that are different by factory
Other than the standard emergency stop switch, customers can also have the printer work with safety measures that suit their environment. The product can support various safety standards depending on the customer, including safety light curtain and safety mat.

mimaki jfx200-2513 ex a) Work efficiency improved by adding the vacuum-controlling foot switch
With the JFX200-2513 EX, you can use not only the ON/OFF switch on the operation panel, but also a foot pedal to operate the vacuum switch that ensures stable print by adsorbing media to the bed surface. The foot pedal improves work efficiency when the user has no hands free such as for printing on large-size boards.



mimaki jfx200-2513 ex b) Ethernet connection supported
In addition to the conventional USB connection, connection via Ethernet is now available. It is a convenient connection method when connecting a single PC to multiple printers. Setup is easy; just add cables to the existing office network environment.

GALLERY

mimaki jfx200-2513 ex
mimaki jfx200-2513 ex
mimaki jfx200-2513 ex

Watch how it works

We offer only the best machines that cater to your specific requirements, but don't just take our word for it, we want you to see the machine in action! Watch this short feature clip of this machine.

If you feel that this may be the perfect machine for your needs, our team will be more than happy to schedule an actual demo for you
