VULCAN FC-500VC

Flatbed Cutting Plotter

VULCAN FC-500VC

The Vulcan FC-500VC flatbed cutting plotter is ideal for light to medium production and design samples. Ideally suited for packaging boxes, tags, cards and labels. Camera system, User friendly touch screen, Advanced contour cutting, Network interface, U-Disk function and QRcode system, make the FC-500VC special. Perforation cut, Die cut, Kiss cut and Creasing, make your ideas come true.

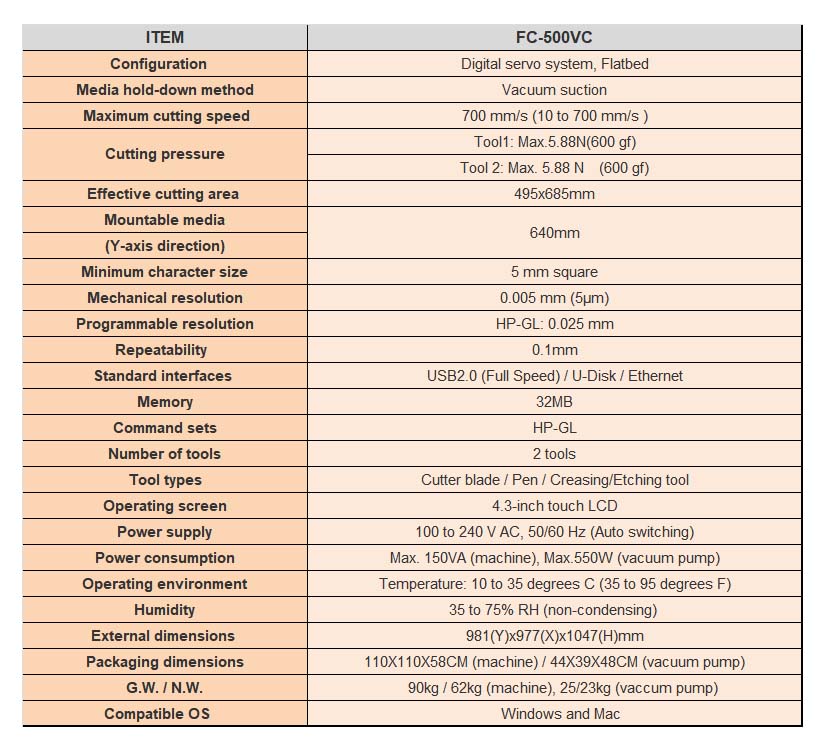

QUICK SPECIFICATIONS

Configuration

Digital servo system, Flatbed

Media hold-down method

Vacuum suction

Maximum cutting speed

700 mm/s (10 to 700 mm/s )

Cutting pressure

Tool1: Max.5.88N(600 gf)
Tool 2: Max. 5.88 N (600 gf)

Effective cutting area

495x685mm

Standard interfaces

USB2.0 (Full Speed) / U-Disk / Ethernet

Power supply

100 to 240 V AC, 50/60 Hz (Auto switching)

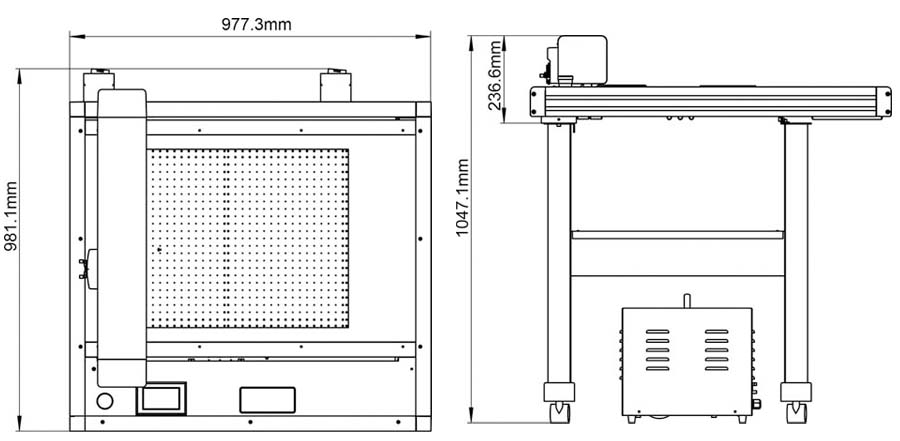

External dimensions

981(Y)x977(X)x1047(H)mm

Vulcan FC-500VC Flatbed Cutting Plotter

Download Brochure

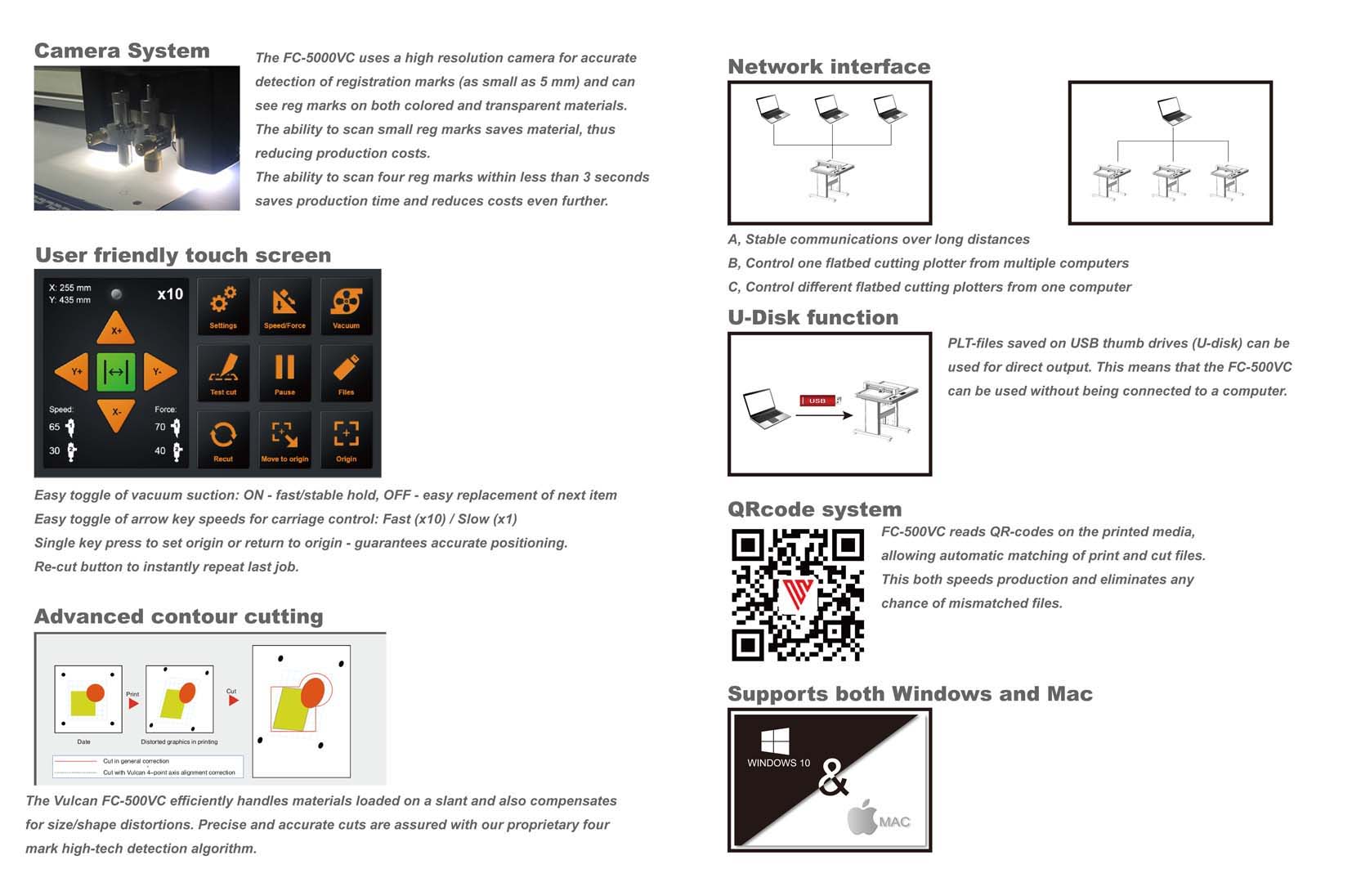

Highlights of the Vulcan FC-500VC Flatbed Cutting Plotter

Vulcan FC-500VC Flatbed Cutting Plotter
Vulcan FC-500VC Flatbed Cutting Plotter
Vulcan FC-500VC Flatbed Cutting Plotter

GALLERY

Vulcan FC-500VC Flatbed Cutting Plotter
Vulcan FC-500VC Flatbed Cutting Plotter
Vulcan FC-500VC Flatbed Cutting Plotter

Watch how it works

We offer only the best machines that cater to your specific requirements, but don't just take our word for it, we want you to see the machine in action! Watch this short feature clip of this machine.

If you feel that this may be the perfect machine for your needs, our team will be more than happy to schedule an actual demo for you

Tags

Vulcan FC-500VC flatbed cutting plotter, Vulcan FC-500VC for packaging and signage, FC-500VC flatbed cutter with vacuum table, Vulcan flatbed plotter for die-cutting
