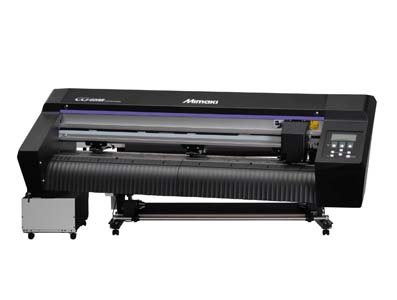

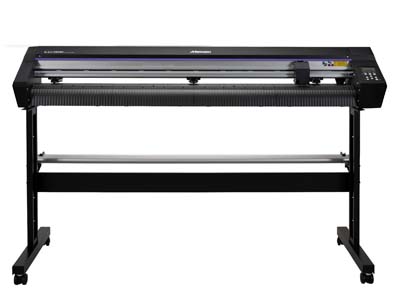

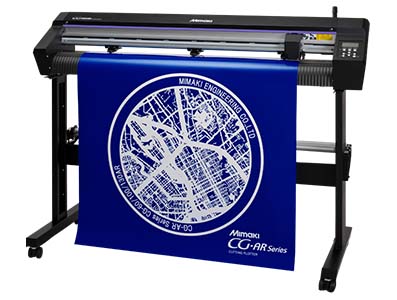

CG-60AR | CG130AR

"Stay sharp" More profit per cut CG-AR Series: Roll to Roll Cutting Plotter

CG-60AR | CG-130AR

"CG-AR Series" are the entry-model of cutting plotter with improved cutting performance, compatibility with a wide range of cutting materials, and enhanced usability, all at an affordable price.
In addition to cutting letters, labels, and stickers, the CG-AR newly supports full cutting and folding lines of cardboads. It can also produce packages up to A3 size by using dedicated options.

QUICK SPECIFICATIONS

Acceptable sheet width (CG-60AR | CG-130AR)

90-740mm (3.5-29.1") | 90-1,550mm (3.5-61.0")

Effective cutting area (CG-60AR | CG-130AR)

606mm×51M (23.9"x167.3') | 1,370mm×51M (53.9"x167.3')

Maximum speed

Cutting: 73 cm/s (28.7"/s), Moving at 45° direction: 103 cm/s (40.5"/s)

Interface

USB, RS-232C, Ethernet

Power supply

AC 100 V - 240 V 1A 50/60Hz

Dimensions(W×D×H) (CG-60AR | CG-130AR)

1,010×355×355 mm (39.8×14.0×14.0") | 1,810×580×1,160 mm (71.3×22.8×45.7")

Mimaki CG AR Series Cutting Plotter

Download Brochure

Features of the Mimaki CG-AR Series Roll-based Cutting Plotter

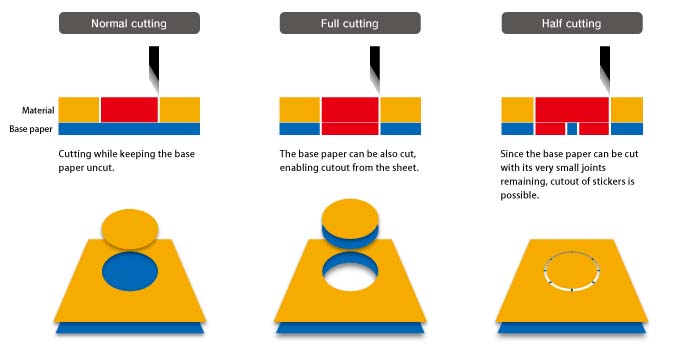

The cutting pressure can be selected from 10 g to 550 g, and three types of cutting are possible: normal cutting, complete cutting, and half cutting. The machine can cut a wide variety of materials, including PVC, fluorescent and reflective sheets, and rubber sheets.

Mimaki CG-AR Series Roll to Roll Cutting Plotter

CG-AR Series are now capable of producing high-quality cutouts from plain paper to cardboard with the use of optional products for cardboard cutting, such as a Sheet table, Cutting sheet, Blade for heavy paper and Creasing tool. Using this machine, you can produce paper crafts and packages.

Mimaki CG-AR Series Roll to Roll Cutting Plotter
Examples of production

Mimaki CG-AR Series Roll to Roll Cutting Plotter

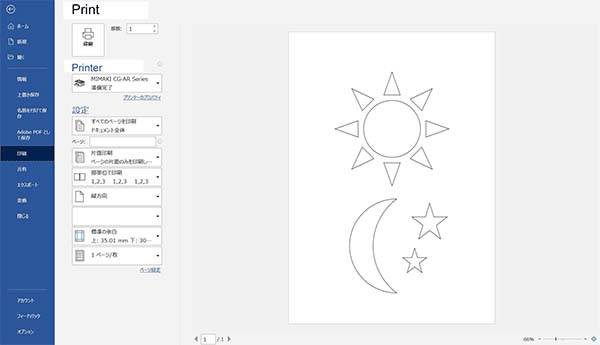

With use of familiar software such as Microsoft Word/Excel/PowerPoint, cutting is now as easy as outputting from a general office printer.

Mimaki CG-AR Series Roll to Roll Cutting Plotter

"ID cut" is a function for automatically cutting data included in an ID simply by scanning the ID register marks output by Mimaki's optionally available printer*. Data transmission from the PC is completed with one-time operation, which drastically saves labor for print & cut and enhances work efficiency. * Compatible with the JV330 Series, JV300Plus Series and the JV/UJV100 Series

Mimaki CG-AR Series Roll to Roll Cutting Plotter
Mimaki CG-AR Series Roll to Roll Cutting Plotter

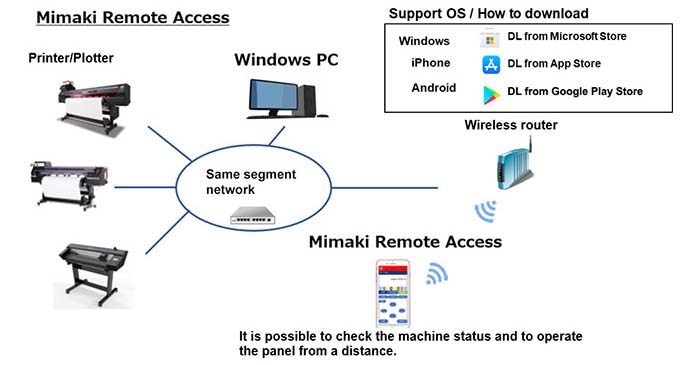

It is now possible to check the status of the cutting plotter remotely from your iPhone or PC. This function enables operators to check the operation status of the machine and to operate the panel from a distance, allowing them to work more efficiently.

Mimaki CG-AR Series Roll to Roll Cutting Plotter
Over cutting and corner cutting

Over cutting and corner cutting of starting & ending points and other corners are possible, which prevents incomplete cutting.

Mimaki CG-AR Series Roll to Roll Cutting Plotter
Continuous Crop Mark Detection

Mimaki CG-AR Series Roll to Roll Cutting PlotterCrop marks are automatically and continuously detected. Printed graphics are accurately contour cut due to the compensation for image distortion. The detection of a maximum of 4 crop marks provides a precision finish.
Nested data which are continuously arranged in the directions of X-axis and Y-axis are cut by automatically making corrections.





Segment Compensation

Mimaki CG-AR Series Roll to Roll Cutting PlotterIntermediate crop marks of the feed direction are detected, enabling four-point corrections for each segment. This leads to accurate, long-length cutting, even if the image is distorted.

Picture: Intermediate crop marks can be made by FineCut.





Other functions and improvements

• Division Cut Function: Cut is performed by splitting a space larger than the sheet width or splitting long data in the X-axis (feed) direction and the Y-axis (width) direction to avoid cut position gap.
• Ethernet Connection: Network control via integration into office LAN.
• Improved assembly and installation: Up to 30% weight reduction for simplified assembly. The addition of rubber feet makes it easier to adjust the rattle when installing on a tabletop.
• Improved cutter holder: The cutter blade can be changed with less operation than conventional products. (4.5 turns of the knob -> 2.5 turns)

Professional sign making software "FineCut/Coat9"

Mimaki CG-AR Series Roll to Roll Cutting PlotterFineCut/Coat9 is plug-in software for Illustrator and CorelDRAW, which meet all high level cutting needs, such as the creation of contour cut data from images, or division cutting with a tiling function.

Software for POP and shop interior designs using templates "Simple POP"

Mimaki CG-AR Series Roll to Roll Cutting PlotterThe "Simple POP" is our original software that specializes in creating POP and in-store decorations. Such POP and in-store decorations can be designed through a simple operation using templates in the Simple POP.

GALLERY

Mimaki CG-AR Series Roll to Roll Cutting Plotter
Mimaki CG-AR Series Roll to Roll Cutting Plotter
Mimaki CG-AR Series Roll to Roll Cutting Plotter

Watch how it works

We offer only the best machines that cater to your specific requirements, but don't just take our word for it, we want you to see the machine in action! Watch this short feature clip of this machine.

If you feel that this may be the perfect machine for your needs, our team will be more than happy to schedule an actual demo for you

Tags

Mimaki CG-AR Series, Cutting Plotter, Half Cut Function, FineCut, Mimaki CG-60AR Cutting Plotter, Mimaki CG-130AR Cutting Plotter, Mimaki vinyl cutting plotter, Mimaki CG-AR for signage and graphics, Mimaki CG-AR for heat transfer vinyl, CG-AR for graphics and signage production

Related Products

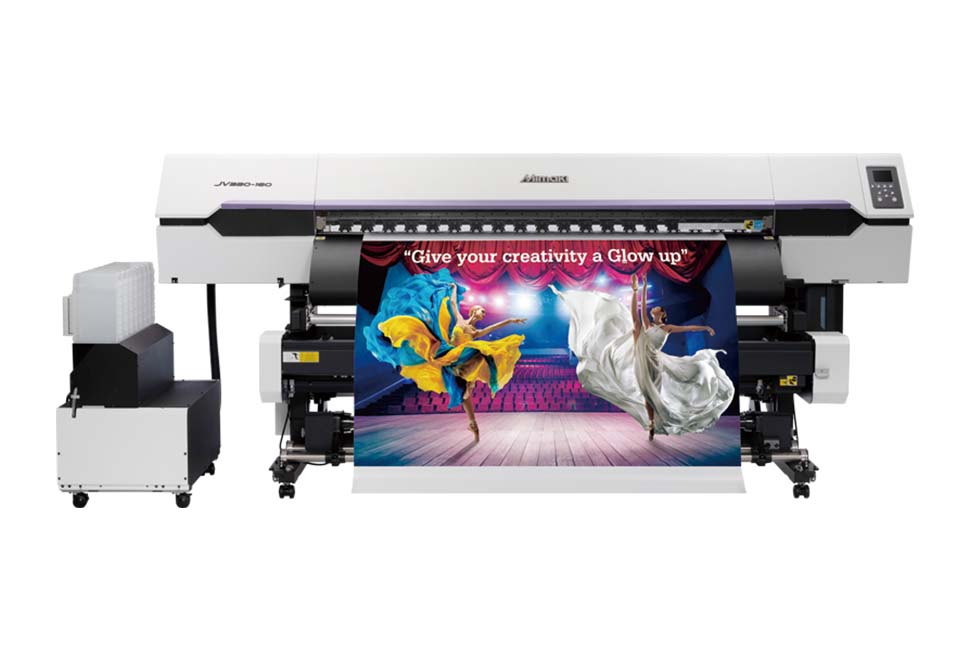

Mimaki JV330 Series Eco-Solvent Printer
