BRAND NEW! JV100-160

Expert printing made easy.


With two newly developed heads, the Mimaki JV100-160 has pursued high quality, high productivity, and stable operation as a eco-solvent inkjet printer. In addition to NCU (Nozzle Check Unit), NRS (Nozzle Recovery System), and MAPS4 (Mimaki Advanced Pass System4) that enable stable and high-quality printing, DAS (Dot Adjustment System) is also provided to new "100 series" printers. Dot position correction and feed amount correction, which used to be manual operations and require time and effort, can be automated, reducing the workload on the operator.


Print Resolution

360 dpi, 600 dpi, 720 dpi, 900 dpi, 1200 dpi

Maximum print width

1,610 mm (63.4 in)

Max Media Thickness

1mm or less

Rolled Media Weight

45 kg or less

Power Supply

AC 220-240V


166 kg (366 lb)

Dimensions (WxDxH)

2,775 x 700 x 1,392 mm (109.3 x 27.6 x 54.8 in)


Eco-solvent ink
・AS5 (C,M,Y,K,Lc,Lm,Lk, and Or)
・SS21 (C,M,Y,K,Lc,Lm,Lk, and Or)
・BS4 (C,M,Y, and K) *Only available in specific countries

mimaki JV100-160 Eco-Solvent Printer

Download Brochure

Features of the Mimaki JV100-160 Eco-Solvent Printer

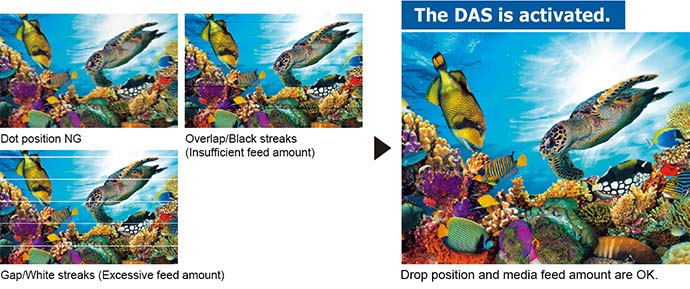

DAS (Dot Adjustment System) NEW!

The JV100-160 is equipped with the DAS, a function to automatically adjust the dot position and feeding amount that affect print quality.
When media or printing conditions are changed, an adjustment of ink dot position and media feed amount to suit is necessary. As the DAS automatically performs these operations, printing can be performed without any labor or variations in adjustments by the operator.

mimaki jv100-160 Eco-Solvent Printer


Mimaki technology that enables stable and high-quality print


Generally, swath boundaries are straight lines. Therefore, a slight misalignment between boundaries causes banding or uneven color printing. MAPS4 (Mimaki Advanced Pass System 4) reduces banding and uneven color printing with blurred boundaries similar to gradation printing.

mimaki ujf3042mkii UV Flatbed PrinterMAPS4 ON
Banding and uneven color printing are reduced by scattering swath boundaries. Beautiful print image is obtained.



mimaki ujf3042mkii UV Flatbed PrinterMAPS4 OFF
Bandings appear on swath boundaries. Print quality is remarkably degraded because banding is recognizable on each boundary.



NCU & NRS automatically detects missing nozzles and performs recovery

NCU (Nozzle Check Unit) detects the status of nozzles automatically. When the NCU detects a missing nozzle, it automatically performs cleaning. If cleaning does not solve the problem, NRS (Nozzle Recovery System) automatically replaces the defective nozzles with other nozzles, which enables users to continue the print operations without waiting for a repair by a technician.

mimaki jv100-160 Eco-Solvent Printer

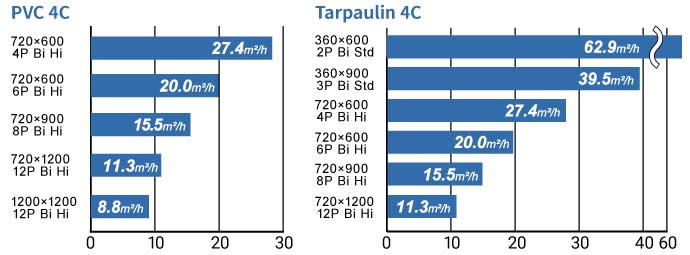

Prints out 180% faster than JV150 *

High productivity supported by high functionality allows for more order processing of short-duration work. *JV100-160: 20.0m²/h JV150-160: 11.1m²/h (Media: PVC, Y resolution: 720dpi 6P)

Print Speed

mimaki jv100-160 Eco-Solvent Printer

New AS5 and CS250 inks with excellent drying properties are used

Mimaki JV100-160 Eco-Solvent PrinterNew ink boasts excellent safety and high quality, which is evaluated by waveform created by a printer manufacturer. One of the features is upgraded drying property. It evaporates quickly after printing and print-outs dry much faster, which prevents blocking and enables reproducing in detail even images that need a lot of ink.

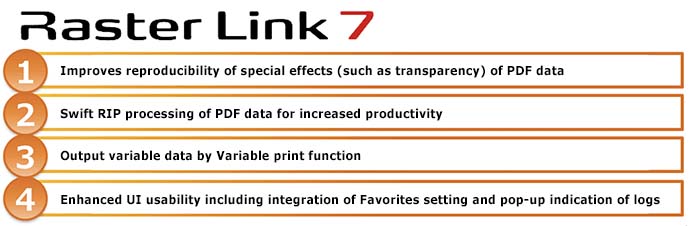

RIP core modified to enable high-speed PDF processing, improving processing speed by 25% on average. Increases productivity.

RasterLink7 | Product information

mimaki jv100-160 Eco-Solvent Printer


Mimaki JV100-160 Eco-Solvent Printer
Mimaki JV100-160 Eco-Solvent Printer
Mimaki JV100-160 Eco-Solvent Printer

Watch how it works

We offer only the best machines that cater to your specific requirements, but don't just take our word for it, we want you to see the machine in action! Watch this short feature clip of this machine.

If you feel that this may be the perfect machine for your needs, our team will be more than happy to schedule an actual demo for you
