UJF-7151 PLUS II

Amazing quality, Blazing speed, Uncompromising versatility.

UJF-7151 PLUS II

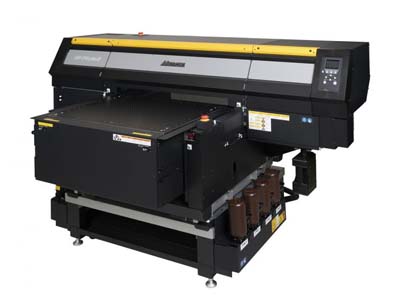

The Mimaki UJF-7151 plusII is a high-performance UV inkjet printer model with high accuracy, high image quality, and high speed, and is a further improvement in quality and stability from the current model, the UJF-7151 plus, which offered high accuracy and high image quality in addition to class-leading productivity and stability.
It offers new expression with the color gloss function, high-definition printing at 1800 dpi, and the ability to automate workpiece transport with "Mimaki original MDL (Mimaki Device Language) commands".

QUICK SPECIFICATIONS

Printhead

eight on-demand piezo heads in a staggered array

Print Resolutions

1,800 dpi

Print Speed (4 Color Mode)

22 beds / hour

Maximum Print Area

27.9″ x 20.0″ (710 × 510 mm)

Maximum media width

28.7″ (730 mm)

Maximum Media Thickness

up to 6.02″ (153 mm)

Maximum Media Weight

66.0 lbs. (30.0 kg)

Ink Type

LH-100 (C, M, Y, K, Lc, Lm, W, Cl)
MUH-100-Si (Si)
LUS-120 (C, M, Y, K, Lc, Lm, W, Cl)
LUS-350 (C, M, Y, K, W, Cl)
PR-200 (Primer)

Mimaki UJF-7151 plus II UV-LED Printer

Download Brochure

Features of the Mimaki UJF-7151 plus II UV Flatbed Printer

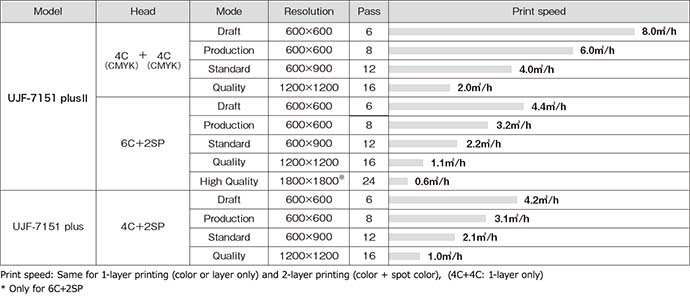

The CMYK staggered (4C+4C) setting can be selected without special colors, primer or clear, to achieve print speeds approximately twice as fast as conventional machine.

Mimaki UJF-7151 plus II UV-LED Printer

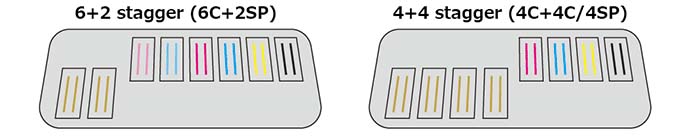

Printhead Configuration: High productivity and high image quality are realized by installing 8 heads, 2 more than the current model.

For a 8-printhead configuration, two set-ups are available: 6+2 stagger (6C+2SP) or 4+4 stagger (4C+4C/4SP).
The 6-color configuration, including the newly added light colors (Lc, Lm), enables more natural and smooth gradations and beautiful prints without graininess.
* Head configuration is selectable at the time of installation, and later modification is also possible. Our service personnel perform such modifications.

Mimaki UJF-7151 plus II UV-LE Printer
Head arrangement Color set Features
6 + 2 stagger 6C + 2SP High-quality printing with two spot colors added to the 6 colors C, M, Y, K, Lc and Lm.
4 + 4 stagger 4C + 4C High volume production with high speed printing due to doubling the four colors C, M, Y and K.
4 + 4 stagger 4C + 4SP Four colors C, M, Y and K as well as four spot colors enhance functionality and expressiveness.

Equipped with a color gloss function that realize glossy colors with color inks alone. Realize impressive textures different from those of conventional clear inks. Realize impressive textures different from those of conventional clear inks. When exposed to ultraviolet radiation, high ink-density portions become hardened to a glossy tone, and low ink-density portions become hardened to a mat tone. Unlike convetional clear ink printing, a just one time printing is very effective.
* Depending on the media and data, an adequate effect may not be possible, so carry out test printing in advance.

Mimaki UJF-7151 plus II UV-LED Printer

The new 1800x1800 dpi mode is even better than the 1200x1200 dpi mode of the previous model. It is capable of beautifully and accurately reproducing images such as miniature paintings and tiny text. In addition, "MFD2" which controls the position of the dots, delivers beautiful image quality with reduced graininess and color irregularities.

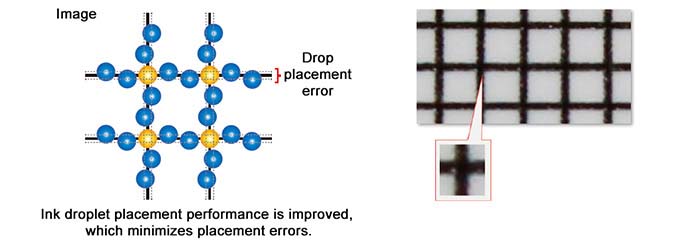

Ink landing system: 1800 dpi maximum

Strengthened structure of the printer body reduces shaking during printing, allowing ink droplets ejected from the print head to land in more precise positions. This provides for sharp edges and fine lines, and less color irregularities in solid printing.

Mimaki UJF-7151 plus II UV-LED Printer



Ball screw mechanism: Mechanical structure for high-precision printing

Mimaki UJF-7151 plus II UV-LED PrinterTo reduce vibration during printing, the 7151 Series has been modified by having the print table move during printing and installing a fixed Y-bar. Two ball screws have also been added to both sides of the table to assist with its movement.

Furthermore, the UJF-7151 plusII uses a ball screw system for the Z-axis as well, which greatly increases the load capacity from 10 kg to 30 kg, making it possible to use heavy media and high-precision jigs for industrial applications.



Improved image quality by supporting MFD2 (Mimaki Fine Diffusion 2)

Supports MFD2 (Mimaki Fine Diffusion 2) for improved image quality. MFD2 controls the position of the dots to reduce graininess, suppress unintended noise and color irregularities, and enable beautiful prints.

Patent number / JPN: 5230816

Mimaki UJF-7151 plus II UV-LED Printer



Mimaki Advanced pass System 4 (MAPS4) minimizes banding and uneven color printing

Generally, swath boundaries are straight lines. Therefore, a slight misalignment between boundaries causes banding or uneven color printing. MAPS4 reduces banding and uneven color printing with blurred boundaries similar to gradation printing.

Mimaki UJF6042MkII e UV Flatbed PrinterMAPS4 applied
Banding and uneven color printing are reduced by scattering swath boundaries. Beautiful print image is obtained.





Mimaki UJF6042MkII e UV Flatbed PrinterNo MAPS4
Bandings appear on swath boundaries. Print quality is remarkably degraded because banding is recognizable on each boundary.

Ink and media shortage, clogged nozzles, and other minor problems influence stable productivity. The UJF-7151 plusII fully supports continuous printing with reliable technologies.

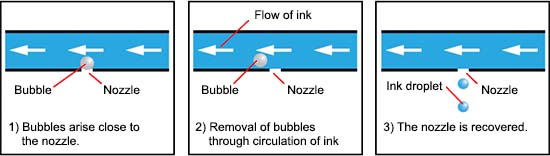

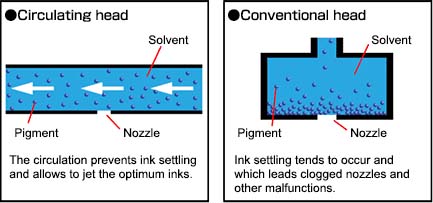

Printhead ink-circulation system reduces clogging nozzles

The ink-circulation system in the head reduces ink settling and thus provides stable ink jetting. In addition, this system removes air bubbles, which plug the nozzle.. Thanks to this function, the nozzle-cleaning frequency is reduced, and accordingly, cost-effective stable printing is achieved.

Mimaki UJF-7151 plus UV-LED PrinterHead Comparison
Mimaki UJF-7151 plus UV-LED PrinterSelf-recovery



Mimaki UJF6042MkII e UV Flatbed PrinterNCU automatically detects and recovers clogged nozzles

Clogged nozzles are detected automatically by monitoring ink droplets with sensors. When clogged nozzles are located, these are automatically cleaned, reducing waste printing. Nozzles are checked per transfer file.

NRS for maintaining productivity

If the clogged nozzles are not recovered after cleaning through the NCU function, the NRS selects substitute nozzles and then restarts printing. This is a significant novelty, since previously, when nozzle cleaning fails, the printhead has to be repaired by a technician, and the printing operation ceases until the printhead is repaired. The NRS* allows the printer to continue printing without interruption by using non-defective nozzles as substitutes for defective nozzles until the technician arrives.* *NRS may not be activated depending on print modes.

Metallic

The MMC (Mimaki Metallic Control) is the system dedicated to metallic printing using Mimaki's unique "Surface Imaging technology". The MMC printing technology that separately prints one type of metallic ink in gloss and matte tones. Using separately the beautiful glossy tone print like mirror finish and the matte tone print of metallic texture with suppressed gloss feeling will expand the range of expressions. Texture expression with embossing effect can be printed by changing the inkjet concentration. The texture expression whose appearance changes according to the light reflection provides a higher level of performance appeal. Color metallic expression is possible by printing with colored ink on top of metallic ink. By combining the application of metallic, color and color metallic, high-quality design print can be available.

Mimaki UJF-7151 plus UV-LED Printer
Mimaki UJF-7151 Plus II UV Flatbed PrinterTrophy
Mimaki UJF-7151 Plus II UV Flatbed PrinterBottle (flat surface)
Mimaki UJF-7151 Plus II UV Flatbed PrinterWooden item
Mimaki UJF-7151 Plus II UV Flatbed PrinterGreeting card
Mimaki UJF-7151 Plus II UV Flatbed PrinterCard case
Mimaki UJF-7151 Plus II UV Flatbed PrinterGift box



White

Mimaki UJF-7151 Plus II UV Flatbed PrinterPrinting with high-concentration white ink as the basic color on transparent or deep-color media makes full-color images more vivid.







Clear

It is a clear ink that can give an additional value such as both gloss and matte tones, texture expression according to the application. UJF-7151 plusII mounting system for clear print control, " MCC (Mimaki Clear Control)" allows the minimization of uncured time to prevent dust from sticking and to avoid bubble generating. It provides high-grade glossy representation and expressive embossing feeling with highly-concentrated clear to lead a fine and beautiful texture print.

Mimaki UJF-7151 Plus II UV Flatbed PrinterGift box

Primer

It is an inkjet primer that improves the adhesion of materials such as resin, glass, metal and those surface-finished. Expanding the range of material selection, high value added applications can be produced.

Mimaki UJF-7151 Plus II UV Flatbed PrinterGift box

As the primer, PR-200 is applied simultaneously with color printing, the PR-200 applying only to the necessary part of material is possible, too.
Therefore the texture of the base material that was lost by conventional manual primer applying can be maintained.
Patent number / JPN: 5817059 USA: US9,132,685 B2

Supports MDL (Mimaki Device Language) commands to automate the printing process

Mimaki offers command sets to enable customer production systems and peripheral devices to control our printers. Through applying these commands, the position and height of the media setting table, the start of printing, and other printer operations can be controlled. It also allows for the acquisition of remaining ink level and error information from the printer.

Regarding the MDL command, customers are able to build systems optimized to their individual applications by developing the necessary software using technical information (SDK) provided from Mimaki. The system will contribute to automation and labor saving in customers business.

Mimaki UJF-7151 Plus II UV Flatbed Printer

GALLERY

Mimaki UJF-7151 plus II UV-LED Printer
Mimaki UJF-7151 plus II UV-LED Printer
Mimaki UJF-7151 plus II UV-LED Printer

Watch how it works

We offer only the best machines that cater to your specific requirements, but don't just take our word for it, we want you to see the machine in action! Watch this short feature clip of this machine.

If you feel that this may be the perfect machine for your needs, our team will be more than happy to schedule an actual demo for you
