Three additional functions

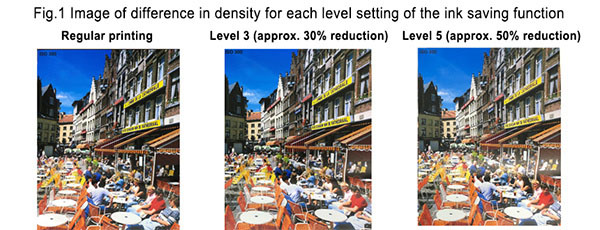

1. Ink saving function to reduce running costs

Reduces ink consumption by up to 50% while maintaining the color balance of the printed design. Ink reduction levels can be set with simple operations of print software "RasterLink7", so there is no need for specialized knowledge or equipment for color adjustment.

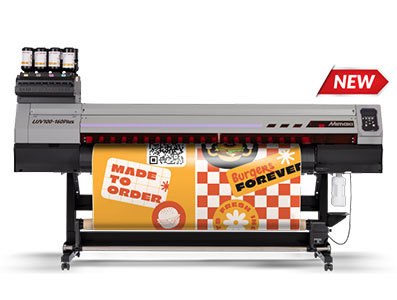

Mimaki UJV100-160Plus Roll to Roll UV-LED Inkjet Printer

2. Maximum 3-layer printing function to expand the range of applications

The "pull-back printing function", which pulls back the printed substrate for follow-up printing, supports up to three-layer printing. Conventional printers support up to two-layers printing, but it was necessary to determine whether to print white to colors or colors to white when the printer was installed. The UJV100-160Plus has a newly added pull-back printing function that enables printing of both methods regardless of the ink color array. In addition, three-layer printing as shown ink (1) and (2) below provides printing application and added value.

(1) Colors - White - Colors: Applied to brightly colored backlit signage day and night

(2) White - Colors - Clear: Applied to window graphics with a variety of expressions

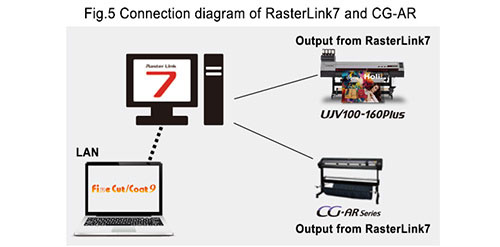

3. Seamless linkage with Mimaki's cutting plotter improves work efficiency

Conventional labels and stockers are produced by printing on a substrate and then using our cutting software "Finecut9". And output the cut data. Now, it is possible to output cut data directly from "RasterLink7" to Mimaki cutting plotter "CG-AR series", improving the work efficiency of operators in cutting operations. This enables linking of printing and cutting even if the output PC does not have design software.

Support functions that enables anyone to print stable, high image quality (Same functions as previous models)

Automatic dot position and feed correction function：DAS (Dot Adjustment System)

When media or printing conditions are changed, an adjustment of ink dot position and media feed amount to suit is necessary. As the DAS automatically performs these operations, printing can be performed without any labor or variations in adjustments by the operator.

Smooth printing by reducing color irregularities and glossy streaks：MAPS4 (Mimaki Advanced Pass System 4)

Generally, swath boundaries are straight lines. Therefore, a slight misalignment between boundaries causes banding or uneven color printing. MAPS4 (Mimaki Advanced Pass System 4) reduces banding and uneven color printing with blurred boundaries similar to gradation printing.

MAPS4 ON
Banding and uneven color printing are reduced by scattering swath boundaries. Beautiful print image is obtained.

MAPS4 OFF
Bandings appear on swath boundaries. Print quality is remarkably degraded because banding is recognizable on each boundary.

NCU & NRS automatically detects missing nozzles and performs recovery

NCU (Nozzle Check Unit) detects the status of nozzles automatically. When the NCU detects a missing nozzle, it automatically performs cleaning. If cleaning does not solve the problem, NRS (Nozzle Recovery System) automatically replaces the defective nozzles with other nozzles, which enables users to continue the print operations without waiting for a repair by a technician.

3. Capability of supporting various media types and value-added prints, achieved by using UV-curable ink

Print on a wide variety of materials, including not only PVC and tarpaulin but also paper with no acceptance layer, PET film, and fabric, is enabled. Value-added print such as two-layer print, in which white ink is used for transparent PET film, and varnish print using clear ink, can also be handled.
