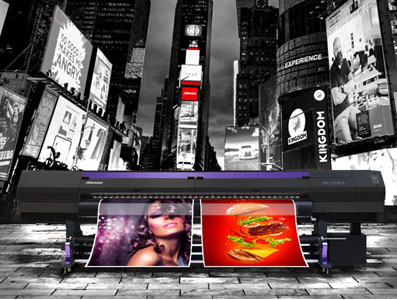

SWJ-320EA

Print quality, efficiency and cost effectiveness

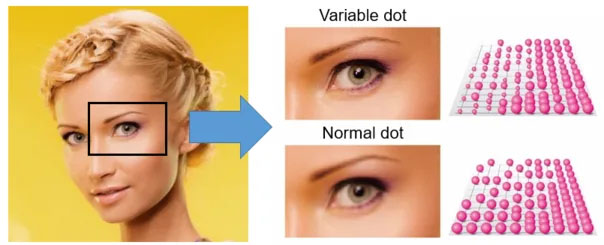

Variable dot delivers smooth gradation for high resolution image quality

To reduce a grainy appearance, the 3 most optimum drop sizes (7pl minimum) are automatically selected, depending on the print mode

Grainy appearance is also reduced by using the 900x1200dpi high resolution print mode available for high quality printing

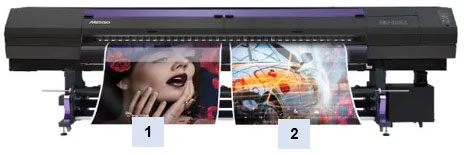

Twin-roll printing as optional

Double your production volume per day with twin-roll printing function

Up to 2 rolls, maximum width of 1,524mm each

Media with different widths can be used

Maximum roll weight is 100kg

Handle different jobs at the same time: different data can be assigned to each roll of media

Both rolls should at least have the same thickness level and be printable with the same profiling

Print speed

High speed production at the speed of max. 137sqm/h for distance viewing and 35 sqm/h (600×600 dpi) for short range viewing

Ink supply and configuration

High productivity, low ink consumption, and excellent cost performance

Uses eco-solvent CS100 2L supplied ink (CMYK), which remains weather resistant after three years. More affordable than conventional ink cartridges, it has exceptional stability and low propensity to clog nozzles.

Newly-developed ink tank contains max. of 3L ink per colour which can be filled at once for longer production runs with less interaction

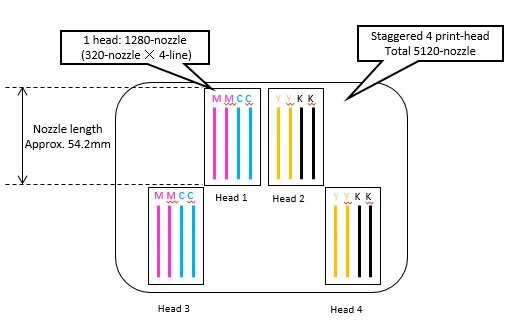

Print head configuration

4 print heads arranged in staggered mode for dynamic production

1280 nozzles (320 nozzles × 4 lines) per head

4 heads with total 5,120 nozzles

Optimised media feeding for uninterrupted printing

Heavy duty media feed system enhances operation efficiency

Head carriage equipped with two media jam sensors to detect wrinkled or draped media surface, preventing damage to print heads, a head strike or media jam

Pinch rollers with high-accuracy and high-grip ensure stable media feeding and reduces uneven colour printing due to misalignment and banding

Newly designed tension bar and take-up system for stable media feeding

Constant tension on media even after the media roll diameter changes guarantees high-definition printing

Mimaki's Core Technologies

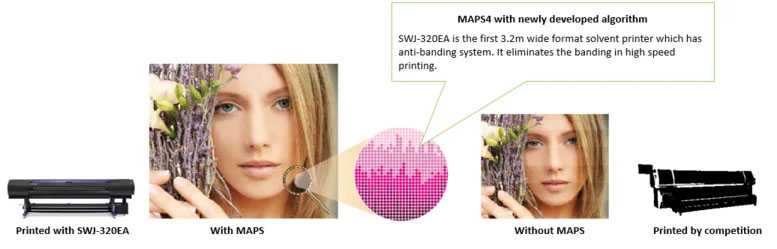

Mimaki Advanced Pass System (MAPS 4)

Reduction of banding, even at higher speed

Disperses ink drops overlapping the passes, preventing uneven uneven ink drying and bi-directional stripes

MAPS4 works in the higher pass modes of each resolution, delivering stable high quality printing

Print operator is able to use parameters for optimal speed / quality

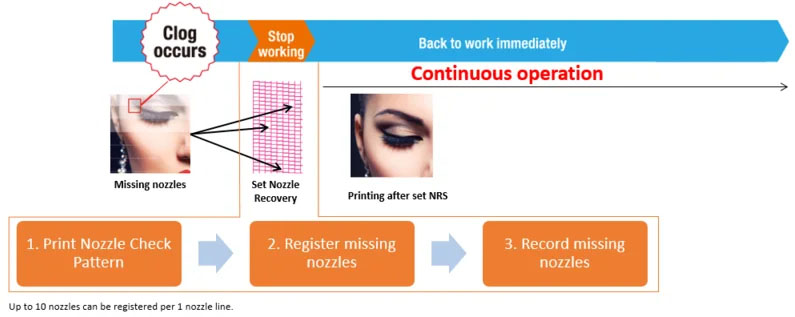

Nozzle Recovery System (NRS)

Mimaki's NRS enables replacement of clogged nozzles with open available nozzles, reducing printer interruption, production loss and poor image quality

When the print operator detects a clogged nozzle, the missing nozzle can be replaced automatically or manually

Makes printing possible even if nozzles are missing

This NRS feature increases uptime and postpones service intervention
